Place of Origin: Henan, China (Mainland)
Brand Name: SANHUI
Model Number: Molybdenum fabricated part
Application: lighting, vacuum electric devices, etc
Shape: rectangle or customized
Material: molybdenum
Dimensions: as per your request
Chemical Composition: mo>99.95%
Appearance: polished
Tolerance: +-0.1mm thickness
Grade: pure molybdenum or alloy
Conditions: vacuum annealed or un-annealed
Services: deep processing
Market: global
Packaging: plywood cases
MOQ: 1 kgs
Packaging & Delivery
Packaging Details: standard plywood cases
Delivery Detail: within 10-15 working days after confirmation
Specifications

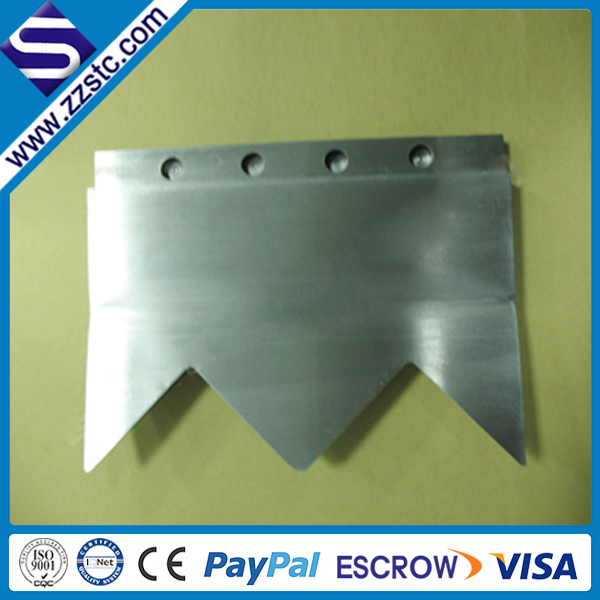

Molybdenum fabricated part
1.The density:10.2g/cm3
2.The Purity>=99.95%
3.Thickness:0.1mm~30.0mm
1.Chemical compositions :
|
Type |
Chemical composition(%) |
|
|
Mo |
Impurity |
|
|
Mo1 |
>=99.95 |
<=0.05 |
|
Mo2 |
>=99.9 |
<=0.10 |
3.Dimensions of High quality pure molybdenum sheet :
| Thickness(mm) | Width | Length |
| 0.1-0.15 | 50-250 | 100-1000 |
| >0.30-0.30 | ||
| >0.30-0.50 | ||
| >0.50-0.70 | ||
| >0.70-1.0 | 50-800 | |
| >1.0-2.0 | ||
| >2.0-3.0 | ||
| >3.0-4.0 | ||
| >4.0-5.0 |
Our products are made of metal powder. Put powder into leather sheath and then hammer into rod, plate and varied shapes by using machine. Put embryonic form into high temperature sintering furnace. At last, finish producing by related process, like hammering, drawing, straightening, polishing, etc.
